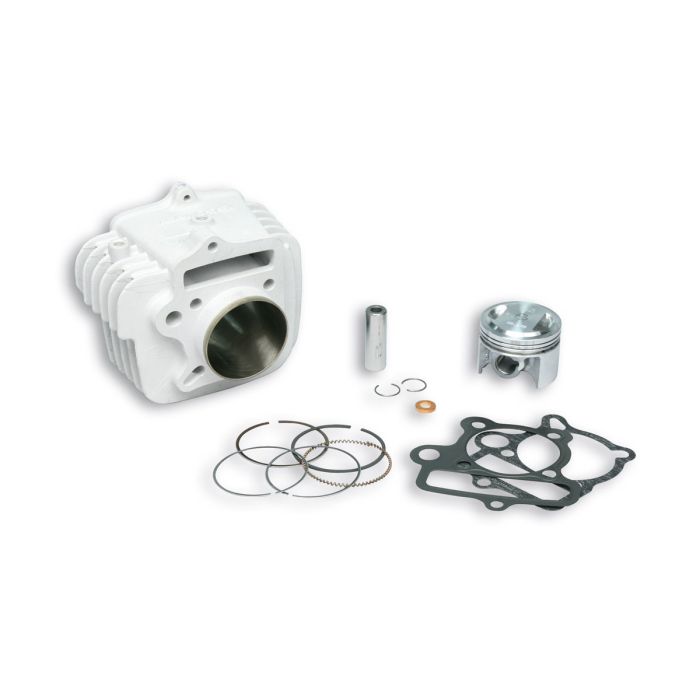

Malossi aluminum cylinder D 56 piston pin 15 for Pit bike 4T LIFAN 1P56FM 150cc

The Malossi Ø 56 aluminum cylinder is a high-quality product designed for 150cc 4-stroke Pit bikes (LIFAN 1P56FMJ).

The cylinder is made with a primary alloy of silicon-hardened aluminum, which ensures optimal strength. The cylinder barrel is coated with silicon carbides in a galvanic nickel matrix and cross-honed with diamonds for a smooth and precise surface. The machining is done on high-precision CNC machines, with cylinder-piston couplings selected with a tolerance of only 0.05 mm. The heat exchange surfaces have been recalculated and increased to ensure better heat dissipation.

The piston is super compact and composed of three segments. It is made with a special primary alloy of low thermal expansion silicon-aluminum, with a tin coating on the sliding walls. The piston is also machined on CNC machines, with lightening and reinforcement to ensure optimal performance. The heat exchange surfaces have been increased for better heat dissipation.

The segments are special and offer high sliding and exceptional mechanical resistance. The first compression segment is made of nitrided and chromed steel, while the second segment is made of special cast iron. The oil scraper is composed of three pieces of special alloyed and chromed steel.

It is important to note that, due to the difficulty in identifying the manufacturer of the vehicle engines, it is necessary to carefully verify the stroke measurements, piston pin diameter, and stud spacing before purchasing Malossi products.

SPECIFICATIONS

• Vehicle: PIT BIKE
• Engine: 1P56FMJ
• Malossi Cylinder: Ø 56
• Original Vehicle Displacement: 150
• Stroke: 59
• Piston Pin: Ø 15
