Malossi K-DRIVE Z 29 Tooth Sprocket
for YAMAHA T-MAX 560
Check the compatibility with your motorcycle
FIND YOUR BIKE - compatibility table
-20%
Special Price €254.40 Regular Price €317.92

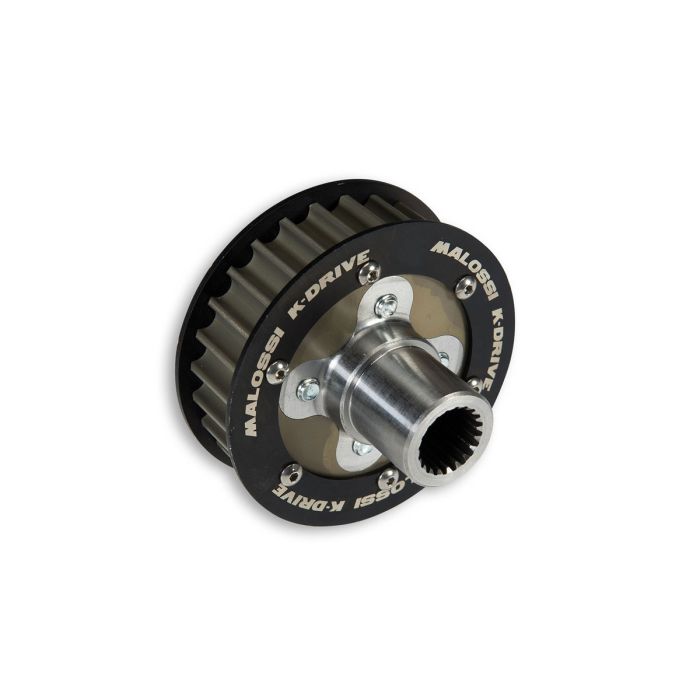

The Malossi K-DRIVE Z29 sprocket is a lighter transmission ratio than the original, specifically designed for the Yamaha T-Max 530 and 560. These sprockets are characterized by a refined aesthetic and offer different ratios to meet the different needs of riders.
Made of aluminum with a deep hard oxidation of 25 microns, Malossi sprockets maintain a lightweight geometry while also providing great wear resistance. The central hub is constructed with a special alloy steel that has not undergone heat treatment to avoid dragging problems with the motor transmission shaft.
SPROCKET-PINION COUPLING TABLE
| Pinions | Sprockets | Ratio | % Ratio |
| 25 | 60 | 2,400 | - 5.8% |
| 25 | 59 | 2,360 | - 4.0% |
| 25 | 58 | 2,320 | - 2.2% |
| 26 | 60 | 2,308 | - 1.7% |
| 25 | 57 | 2,280 | - 0.5% |
| 26 | 59 | 2,269 | Original |
| 25 | 56 | 2,240 | + 1.3% |
| 26 | 58 | 2,231 | + 1.7% |
| 27 | 60 | 2,222 | + 2.1% |
| 27 | 59 | 2,185 | + 3.7% |
| 27 | 58 | 2,148 | + 5.3% |
| 28 | 60 | 2,143 | + 5.6% |
| 28 | 59 | 2,107 | + 7.1% |
| 28 | 58 | 2,071 | + 8.7% |
| 29 | 60 | 2,069 | + 8.8% |
| 28 | 57 | 2,036 | + 10.3% |
| 29 | 59 | 2,034 | + 10.3% |
| 28 | 56 | 2,000 | + 11.9% |
| 29 | 58 | 2,000 | + 11.9% |
| 29 | 57 | 1,966 | + 13.4% |
| 29 | 56 | 1,931 | + 14.9% |
Attention: the matches in this table are the only ones possible, otherwise the timing belt would be either too short or too long.
