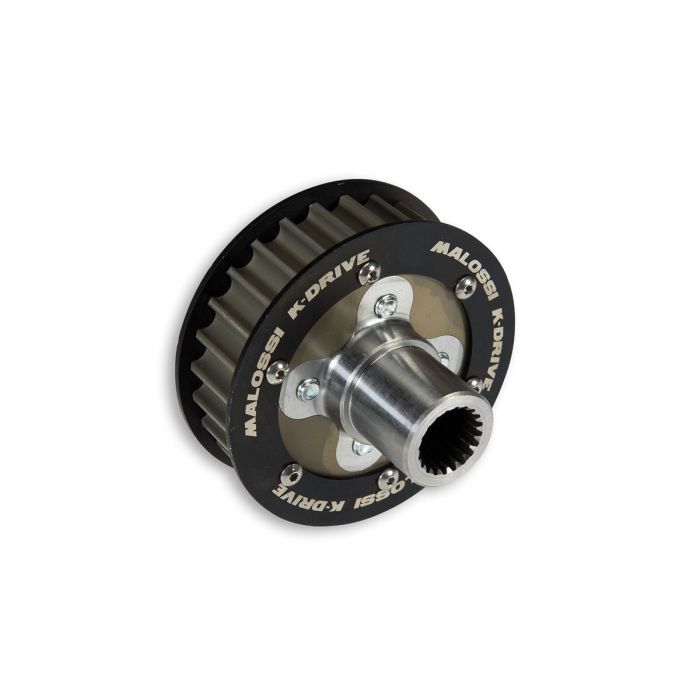

Malossi K-DRIVE Z 28 Tooth Sprocket
for YAMAHA T-MAX, T-MAX DX, T-MAX SX
Check the compatibility with your motorcycle
FIND YOUR BIKE - compatibility table
-20%
Special Price €240.60 Regular Price €300.71
The Malossi K-DRIVE Z28 sprocket is a lighter transmission ratio than the original, specifically designed for the Yamaha T-Max 530. This sprocket offers a refined aesthetic and a range of different ratios to meet the needs of every rider.
Made of aluminum with a deep hard oxidation treatment of 25 microns, this sprocket offers a lightweight geometry without compromising wear resistance. The central hub is constructed with a special alloy steel, which has not undergone heat treatment to avoid dragging issues with the engine transmission shaft.
SPROCKET-PINION COUPLING TABLE
| Pinions | Sprockets | Ratio | % Ratio |
| 24 | 60 | 2,500 | - 10.2% |
| 24 | 59 | 2,458 | - 8.3% |
| 26 | 60 | 2,308 | - 1.7% |
| 26 | 59 | 2,269 | Original |
| 26 | 58 | 2,231 | + 1.7% |
| 27 | 60 | 2,222 | + 2.1% |
| 27 | 59 | 2,185 | + 3.7% |
| 27 | 58 | 2,148 | + 5.3% |
| 28 | 60 | 2,143 | + 5.6% |
| 27 | 57 | 2,111 | + 7.0% |
| 28 | 59 | 2,107 | + 7.1% |
| 28 | 58 | 2,071 | + 8.7% |
| 29 | 60 | 2,069 | + 8.8% |
| 28 | 57 | 2,036 | + 10.3% |
| 29 | 59 | 2,034 | + 10.3% |
| 28 | 56 | 2,000 | + 11.9% |
| 29 | 58 | 2,000 | + 11.9% |
| 29 | 57 | 1,966 | + 13.4% |
| 29 | 56 | 1,931 | + 14.9% |
Attention: the matches in this table are the only ones possible, otherwise the timing belt would be either too short or too long.
