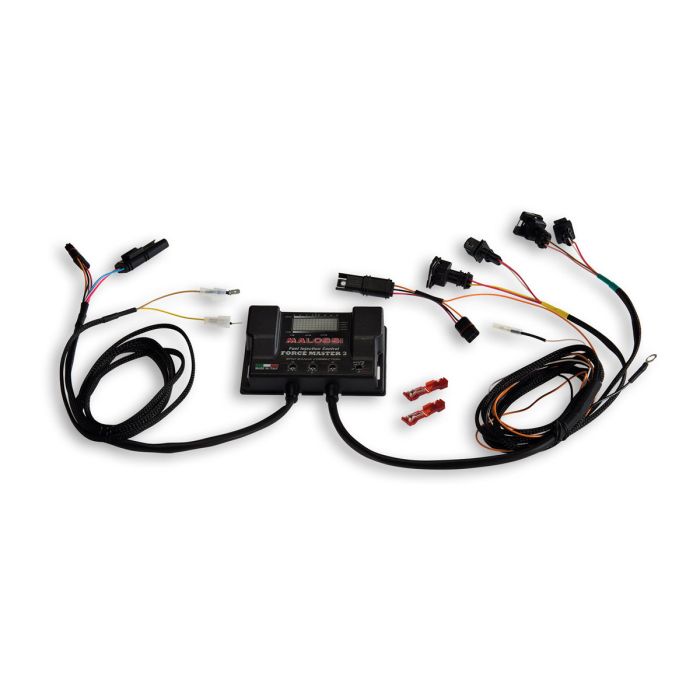

Malossi FORCE MASTER 3 ECU

The Malossi FORCE MASTER 3 electronic control unit is an innovative and advanced product for fuel-injected vehicles. With this control unit, you can fully exploit the potential of your engine, using 100% of its capabilities.

One of the main features of the Force Master 3 is the lambda modulator. While the scooter's original control unit interfaces with the lambda probe installed on the exhaust to adjust the fuel mixture, the Force Master 3 intercepts the signal from the original probe and sends the values produced by a virtual lambda probe to the primary control unit. This allows for dynamic and personalized management of the fuel mixture even in situations where the original system would be programmed to analyze the results from the lambda probe. In this way, it is possible to manage the fuel mixture even in the idle and transition zones, where the lambda probe control would prevent any intervention.

In addition, thanks to a more advanced circuit, the Force Master 3 eliminates electrical disturbances present in the throttle position signal, allowing for more precise detection of its actual opening degree and improving response times. This translates into significantly improved engine performance and efficiency.

In addition to refined hardware, the Malossi FORCE MASTER 3 control unit is equipped with a high-capacity microprocessor, which allows Malossi technicians to introduce new software strategies and fully exploit all the potential of this product.

SPECIFICATIONS

• Carburetion adjustment
• +/- 14% at LOW / HIGH / MID
• RPM limiter: + 1000 RPM
• 8 different maps
• Lambda emulator
• Temperature range = -20°C +80°C
• Minimum operating voltage = +7V
• Maximum operating voltage = +16V
• Average current absorbed <- 200mA
• Environmental protection = IP65

Special attention was paid to improving the user interface, introducing a graphical display showing the main functional parameters of the device:

• Firmware version
• System status
• Carburetor adjustment switch positions

The incredible innovations of FORCE MASTER 3 complement the special features that have placed all Malossi ECU models at the forefront:

• Fuel calibration +-250%
• Quoted fuel correction plans 8 * 20 break
• Fuel management during engine warm-up phase
• Programmable recovery pump
• Extended operation beyond rev limiter
• Where possible, engine parameter reading via K-Line KWP2000
• User fuel compensation, via three external trimmers, +/- 14% at min/medium/max
• Immunity to electromagnetic disturbances present in the vehicle
• Wiring with cables and sheaths compatible with oils and hydrocarbons with temperature range -20 +150°C
