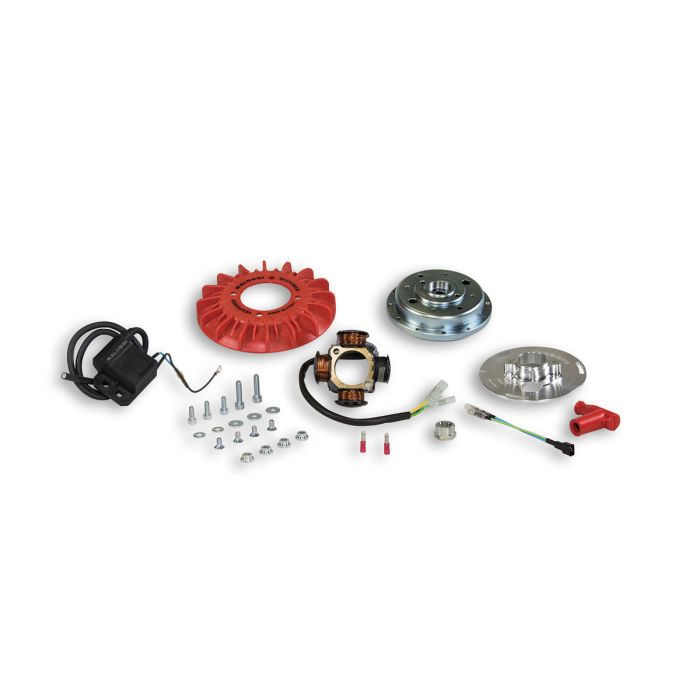

Malossi VESPower Ignition Cone 20 Flywheel kg 1.2

The Malossi VESPower ignition is a high-quality technical component specifically designed for vintage Vespa motorcycles with gears. This line of complete ignitions offers a perfect and easy-to-install solution for every model.

The ignition stands out for several important features. The lightweight flywheel, weighing 1.2 kg, offers optimal inertia, as indicated in the provided table. It is made with a forged material that allows the addition of external masses (not included in the kit) for further balancing.

The system includes a 4-pole, 12V, 90W stator, with a dedicated output for battery charging. The fan, made of red plastic material, is equipped with booster secondary fins that improve cooling. The fan profile and power consumption distribution have been optimized to ensure excellent performance.

Each specific application comes with dedicated wiring, which further simplifies installation. Additionally, the ignition is equipped with an integrated coil/CDI unit, which helps improve system efficiency.

It is important to note that the voltage regulator is only included in some models. It is recommended to carefully check the product specifications to ensure the presence of this feature.

The Malossi VESPower ignition is a reliable and high-quality technical component that offers optimal performance for vintage Vespa motorcycles with gears.

SPECIFICATIONS

• Applications: COSA 125/150/200 2 stroke, PX 125/150 euro 0-3, PX E 200 2 stroke
• Crankshaft cone: Ø 20
• Static weight: 1.2 kg
• Moment of inertia: 28 Kg/cm2

Additional flywheel masses are optionally available, allowing you to customize the ignition to your vehicle's preparation, further increasing the moment of inertia.

Two versions are available:

• Article: 1715715
• For all VESPower (except articles 5516956 and 5517175)
• Dimensions: Ø 144x105x18
• Static weight (including screws): 824 g
• Moment of inertia: 34 Kg/cm2

• Article: 1715716
• For all VESPower (except articles 5516956 and 5517175)
• Dimensions: Ø 134x105x18
• Static weight (including screws): 420 g
• Moment of inertia: 19 Kg/cm2

COMPATIBILITY NOTES

For installation on vehicles with battery and parking lights on (Germany versions 1980-1990), the use of the Malossi battery charging kit is necessary.

If you want to mount the battery on versions that do not have it, the optional battery charging kit Malossi art. 5515703 is available, consisting of wiring and regulator (available for purchase separately).
