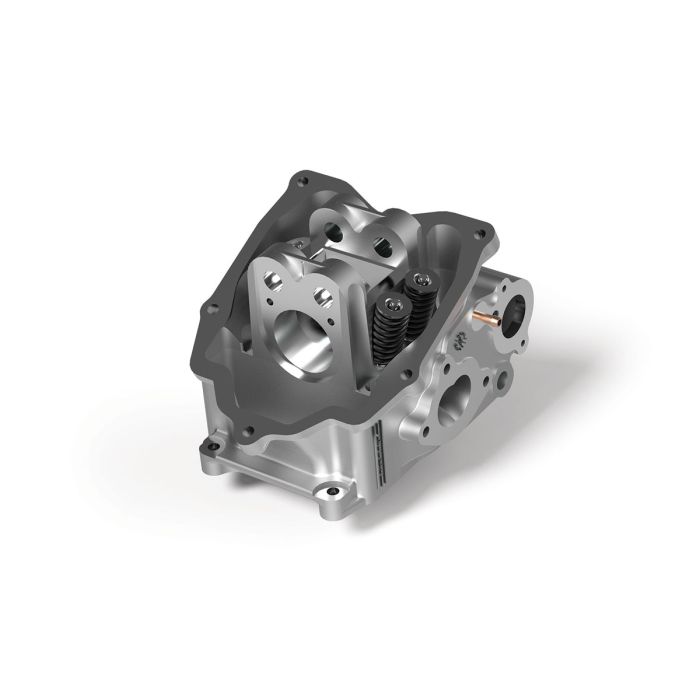

Malossi V4 cylinder head D 74-75,5 aluminum for 3117542 - 3114700 - 3116268

The Malossi V4 HEAD Ø 74-75.5 cylinder head is a high-quality product designed to improve the performance of your scooter. Made of liquid-cooled aluminum, this head is suitable for 200 to 300cc maxi scooters.

Thanks to this head, you can enjoy a power increase of 15-25% on your scooter. It is the first head available for all Piaggio 4T liquid-cooled scooters, in displacements of 125cc, 180cc, 200cc, 250cc, and 300cc. With over seventy applications, it has been designed to give you great excitement.

The head is made with a primary gravity-cast aluminum alloy, annealed and sandblasted. It has been machined with extreme precision on super precise work centers, ensuring thousandth tolerances.

The valve guides have been obtained through a powder sintering process, using steel, phosphorus, carbon, copper, and manganese. The valve seats are made of an alloy of steel, cobalt, molybdenum, and copper, with a special thermochemical treatment.

The intake valves are enlarged to ø 25 in special alloy steel with a thermochemical treatment. The exhaust valves are enlarged to ø 22.2 and made of Nimonich 80 material, a nickel, chromium, titanium, and aluminum alloy.

The exhaust and intake springs are made of pre-tempered chromium silicon steel and stabilized with recalculated load, making them suitable for engine enhancement.

This new head has been designed to work exclusively in combination with Malossi cylinders for 125cc and 180cc displacements, but it can also be adapted to the original cylinder for other displacements.

The head is supplied already assembled and ready for installation, offering you a convenient and practical solution to improve the performance of your scooter.

ATTENTION: For Piaggio 125 ie 4-stroke LC engines produced from September 2014 onwards, which use roller rockers in the cylinder head, it is necessary to purchase, in addition to the following Piaggio products, also the Malossi camshaft art. 5911962 to allow the installation of the V4 HEAD.

• Qty 1 - 877771 Distribution crown
• Qty 1 - B0184845 Discharge side rocker arm
• Qty 1 - B0184835 Intake side rocker arm
• Qty 2 - 486343 Rocker arm shaft

Piaggio models produced from September 2014 onwards:

• APRILIA SR MAX 125 ie 4 stroke LC euro 3
• GILERA NEXUS 125 ie 4 stroke LC euro 3
• PIAGGIO BEVERLY 125 ie 4 stroke LC euro 3 2010 (QUASAR)
• PIAGGIO MP3 YOURBAN 4V 125 ie 4 stroke LC euro 3 2011
• PIAGGIO X7 EVO 125 ie 4 stroke LC euro 3 (QUASAR)
• VESPA GTS Super 125 ie 4 stroke LC euro 3 2014-2016

COMPATIBILITY NOTES

Please note: The following notes refer only to the vehicles listed below. These vehicle lists may not represent the complete compatibility list for the product.

For installation on the original cylinder, it is necessary to slightly modify the piston crown.

• APRILIA ATLANTIC - Arrecife 250 4 stroke LC (PIAGGIO M237M)
• APRILIA ATLANTIC S 300 ie 4 stroke LC euro 3 (PIAGGIO)
• APRILIA SCARABEO 250 4 stroke LC (PIAGGIO M285M)
• APRILIA SCARABEO Light 250 ie 4 stroke LC 2007->
• APRILIA SCARABEO Special 300 ie 4 stroke LC euro 3 (PIAGGIO M28RM)
• APRILIA SPORTCITY 250 ie 4 stroke LC euro 3 (PIAGGIO M288M)
• APRILIA SPORTCITY CUBE 300 ie 4 stroke LC euro 3 (LEADER M28LM)
• APRILIA SR MAX 300 ie 4 stroke LC euro 3
• BENELLI ADIVA AD 250 4 stroke LC euro 2
• DERBI GP1 250 4 stroke LC euro 2-3
• DERBI RAMBLA 250 ie 4 stroke LC euro 3
• DERBI RAMBLA i 300 ie 4 stroke LC euro 3 (PIAGGIO)
• GILERA NEXUS 250 ie 4 stroke LC euro 3
• GILERA NEXUS 300 ie 4 stroke LC euro 3
• MALAGUTI MADISON 3 250 4 stroke LC (PIAGGIO)
• MALAGUTI MADISON RS 250 4 stroke LC (PIAGGIO M237M)
• MALAGUTI PHANTOM MAX 250 4 stroke LC (PIAGGIO M361M)
• PEUGEOT GEOPOLIS 250 ie 4 stroke LC euro 3
• PEUGEOT GEOPOLIS R/GT 300 ie 4 stroke LC euro 3
• PEUGEOT GeoRS 300 ie 4 stroke LC euro 3 (PIAGGIO M28MM)
• PEUGEOT SATELIS 250 4 stroke LC euro 3
• PIAGGIO BEVERLY 250 4 stroke LC euro 1-2 (M285M)
• PIAGGIO BEVERLY 250 ie 4 stroke LC euro 3
• PIAGGIO BEVERLY 300 ie 4 stroke LC euro 3 2010->2016 (M692M)
• PIAGGIO BEVERLY 300 ie 4 stroke LC euro 3 <-2009 (M28MM)
• PIAGGIO BEVERLY 300 ie 4 stroke LC euro 4 2017->2020 (MA21M)
• PIAGGIO BEVERLY S 250 ie 4 stroke LC euro 3
• PIAGGIO BEVERLY TOURER 300 ie 4 stroke LC euro 3
• PIAGGIO CARNABY 300 ie 4 stroke LC euro 3 (QUASAR)
• PIAGGIO MP3 250 ie 4 stroke LC euro 3 (QUASAR M472M)
• PIAGGIO MP3 300 ie 4 stroke LC euro 3 2009->2014 (QUASAR M634M)
• PIAGGIO MP3 300 ie 4 stroke LC euro 3 2014->2016 (M862M)
• PIAGGIO MP3 300 ie 4 stroke LC euro 4 2016->2018 (TA11M)
• PIAGGIO MP3 YOURBAN 4V 300 ie 4 stroke LC euro 3 2011->2016
• PIAGGIO MP3 YOURBAN SPORT 4V 300 ie 4 stroke LC euro 4 2017->2018
• PIAGGIO X7 250 ie 4 stroke LC euro 3 (QUASAR M622M)
• PIAGGIO X7 EVO 300 ie 4 stroke LC euro 3 (QUASAR)
• PIAGGIO X8 250 4 stroke LC euro 2
• PIAGGIO X8 250 ie 4 stroke LC euro 3 (QUASAR)
• PIAGGIO X9 Evolution 250 4 stroke LC (M237M)
• PIAGGIO XEvo 250 ie 4 stroke LC euro 3 (QUASAR)
• ROYAL ALLOY GP 300 LC
• VESPA GTS 250 ie 4 stroke LC
• VESPA GTS 300 ie 4 stroke LC euro 4 2017->2018 (MA33M)
• VESPA GTS Super 300 ie 4 stroke LC euro 3 2014->2016 (QUASAR M454M)
• VESPA GTS Super 300 ie 4 stroke LC euro 3 <-2013 (QUASAR M454M)
• VESPA GTS Super 300 ie 4 stroke LC euro 4 2017->2018 (QUASAR M458M-M45EM)
• VESPA GTV 250 ie 4 stroke LC
• VESPA GTV 300 ie 4 stroke LC euro 3 (QUASAR)
• VESPA SEI GIORNI 300 ie 4 stroke LC euro 4 2018->

Product compatible only with Malossi cylinders.

• APRILIA ATLANTIC - Arrecife 125 4 stroke LC
• APRILIA ATLANTIC - Arrecife 200 4 stroke LC (PIAGGIO M234M)
• APRILIA SCARABEO 125 4 stroke LC (PIAGGIO)
• APRILIA SPORTCITY 125 4 stroke LC (PIAGGIO M281M)
• APRILIA SPORTCITY 200 4 stroke LC euro 3 (PIAGGIO)
• APRILIA SR MAX 125 ie 4 stroke LC euro 3 2011->2014 (M357M)
• DERBI GP1 125 4 stroke LC euro 2-3
• DERBI RAMBLA 125 4 stroke LC euro 3 (PIAGGIO M287M)
• GILERA DNA 125 4 stroke LC
• GILERA DNA 180 4 stroke LC
• GILERA NEXUS 125 4 stroke LC euro 3 2007->2008 (M355M)
• GILERA NEXUS 125 ie 4 stroke LC euro 3 2008->2010 (M357M)
• GILERA RUNNER ST 125 4 stroke LC euro 3
• GILERA RUNNER ST 200 4 stroke LC euro 3
• GILERA RUNNER VX 125 4 stroke LC 2006->
• GILERA RUNNER VX 125 4 stroke LC <-2005
• GILERA RUNNER VXR 180 4 stroke LC
• GILERA RUNNER VXR 200 4 stroke LC 2006->
• GILERA RUNNER VXR 200 4 stroke LC <-2005
• MALAGUTI MADISON 180 4 stroke LC (PIAGGIO)
• MALAGUTI MADISON 200 4 stroke LC (PIAGGIO)
• MALAGUTI MADISON 3 125 4 stroke LC (PIAGGIO)
• MALAGUTI PHANTOM MAX 200 4 stroke LC (PIAGGIO)
• PIAGGIO BEVERLY 125 4 stroke LC <-2009
• PIAGGIO BEVERLY 125 ie 4 stroke LC euro 3 2010->2015 (QUASAR M691M)
• PIAGGIO BEVERLY 200 4 stroke LC
• PIAGGIO CARNABY 125 4 stroke LC euro 3 (LEADER M28FM)
• PIAGGIO CARNABY 200 4 stroke LC euro 3 (LEADER M601M)
• PIAGGIO MP3 125 4 stroke LC euro 3 (LEADER)
• PIAGGIO MP3 YOURBAN 4V 125 ie 4 stroke LC euro 3 2011->2013 (M711M)
• PIAGGIO SUPER HEXAGON GTX 125 4 stroke LC
• PIAGGIO SUPER HEXAGON GTX 180 4 stroke LC
• PIAGGIO X7 125 4 stroke LC euro 3 (LEADER)
• PIAGGIO X7 EVO 125 ie 4 stroke LC euro 3 2009->2010 (QUASAR M623M)
• PIAGGIO X8 125 4 stroke LC euro 2-3 (LEADER)
• PIAGGIO X8 200 4 stroke LC
• PIAGGIO X9 200 4 stroke LC
• PIAGGIO X9 4V 125 4 stroke LC
• PIAGGIO X9 4V Evolution 125 4 stroke LC euro 2-3
• PIAGGIO X9 AMALFI 180 4 stroke LC
• PIAGGIO XEvo 125 4 stroke LC euro 3 (LEADER)
• VESPA GTS 125 4 stroke LC euro 3 <-2013 (M315M)
• VESPA GTS Super 125 ie 4 stroke LC euro 3 2014->2016 (M455M)
• VESPA GTS Super 125 ie 4 stroke LC euro 3 <-2013 (M455M)
• VESPA GTV 125 4 stroke LC (LEADER)
• VESPA Granturismo L - GT 125 4 stroke LC (LEADER)
• VESPA Granturismo L - GT 200 4 stroke LC (M312M)
