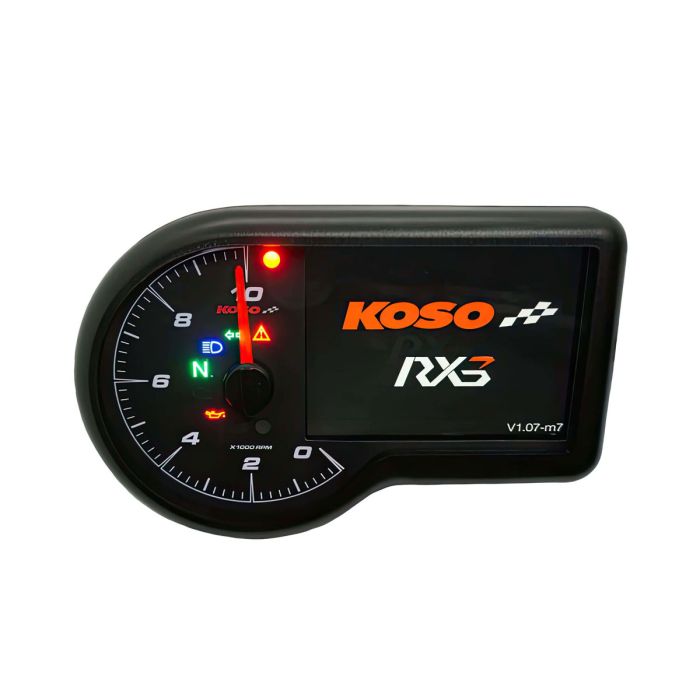

Koso RX-3 TFT odometer, maximum 10000 rpm

Koso RX-3 TFT Speedometer max 10000 rpm

The multifunction Koso RX-3 speedometer with TFT display is a high-tech combined instrument with all the necessary information and extra features.

TFT Display

The 3.5-inch TFT display has a modern design and is very easy to read. The brightness can be adjusted in 5 levels and the backlight can be set to 5 colors. Thanks to its compact size, the speedometer fits any dashboard.

Functions

The RX3 provides an overview of all driving and vehicle-related information. Standard functions such as speedometer, odometer, and tachometer are displayed large and clearly visible in the two main fields. Other functions include gear indicator and gear shift flash, fuel level with warning function, thermometer, clock, voltmeter, or additional practical information such as target distance/speed.

Package

The package includes all the necessary sensors to use all available functions. For water connection, a 1/8-inch PT sensor is available, while all other sensors are universally suitable.

Features

• Tachometer: 0-10,000 rpm
• Speedometer: 0-360 km/h
• Speed warning and maximum speed memory
• Gear indicator and gear shift light
• Thermometer
• Total odometer: 99,999 km
• Partial odometer: 999.9 km
• Fuel level with alarm function
• Clock
• Oil change intervals
• Overheating alarm
• Voltmeter 5V DC - 28V DC
• A/F meter
• Target distance / target speed
• Indicator lights: turn signals, oil, temperature, fuel, voltage, high beam, ABS, RPM, idle
• Dimensions: 140.9 x 90.9 x 45.3 mm
